PRESS STUDS, SAM BROWNE STUDS
& CHICAGO SCREWS



PRESS STUDS MAGNETIC
STUDS		 SAM BROWNE
STUDS		 CHICAGO SCREWS
/ SCREW RIVETS




Click here for press stud setting tools

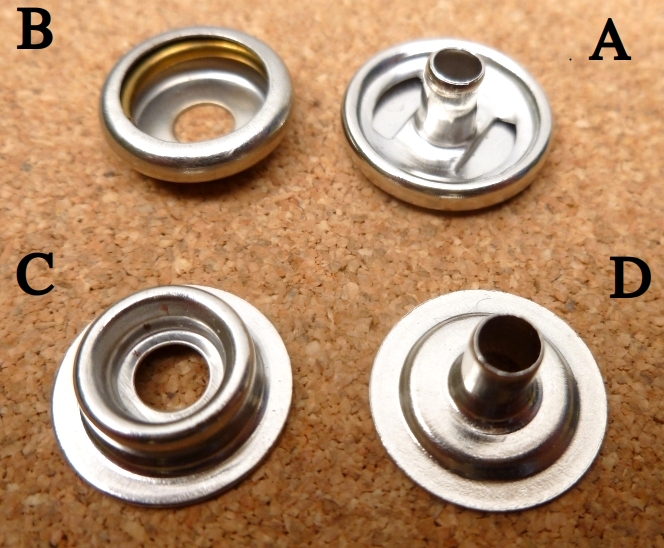

Each press stud comprises four individual parts (A, B, C & D)

STEEL BASED

Order Code
Description

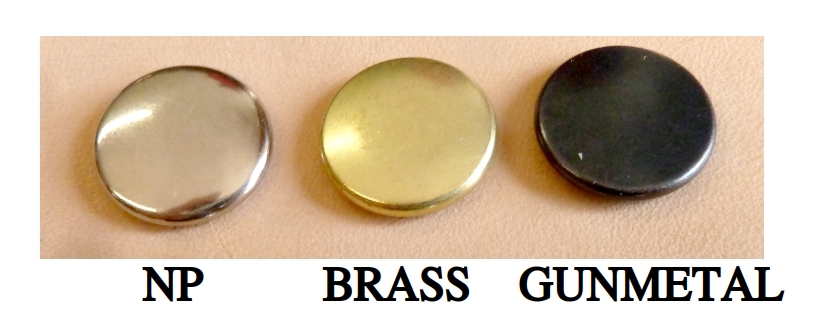

Finish
Price / 10
(inc VAT)
Price / 100
(inc VAT)
Price / 1000
(inc VAT)
F17

Large ring spring fastening press studs - standard hold
Cap diameter: 15mm with standard length stems.

Use setting tool: T13
NP


Brassed


Gunmetal
£2.50
(£3.00)
£18.33
(£22.00)
£125.00
(£150.00)

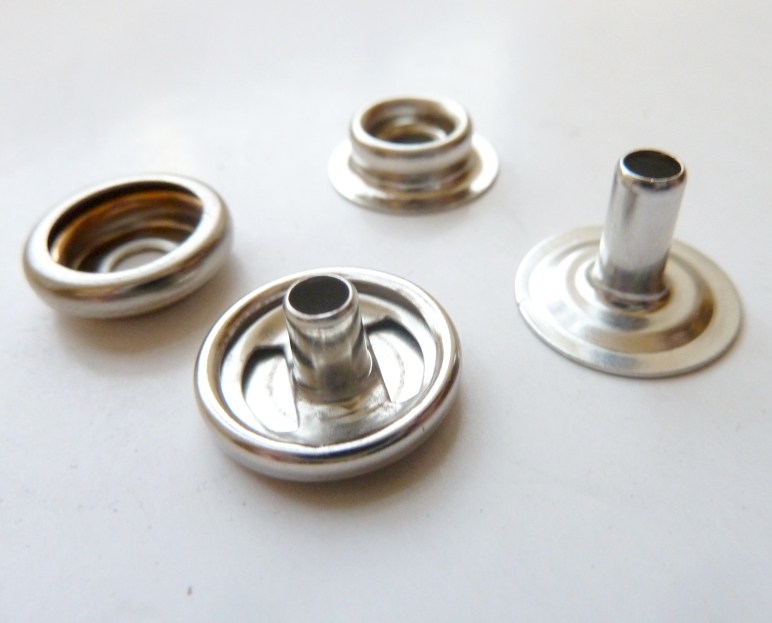

F17 DL

F17 standard hold press studs but Part D has 9 mm long stem (standard is 6 mm) - allows part C to be set through several layers of thicker leather.

Use setting tool: T13
NP
Gunmetal
£3.00
(£3.60)
£22.50
(£27.00)
F17
D-XL

Part D 9mm long stem only
Use with F17 & F02 press studs.

Use Tool T13 to fix press stud part C through several layers of thicker leather.
NP
Gunmetal
£1.50
(£1.80)
£10.00
(£12.00)
£71.25
(£85.50)
F18

Small ring spring press stud: cap diameter 15 mm

Use setting tool: T14
NP
Brassed
Gunmetal
£2.08
(£2.50)
F18 A

Small ring spring press stud: cap diameter 12.50 mm

Use setting tool: T14
NP
Brassed
Gunmetal
£2.08
(£2.50)
F20

Size 5H (Medium) "S" spring press stud: cap diameter 12.5mm

Use setting tool: T15
NP


Brassed


Gunmetal
£2.00
(£2.40)
£13.42
(£16.10)
£108.33
(£130.00)

BRASS BASED

Order Code
 Description
Finish
Price / 10
(inc VAT)
Price / 100
(inc VAT)
 Price / 1000
(inc VAT)

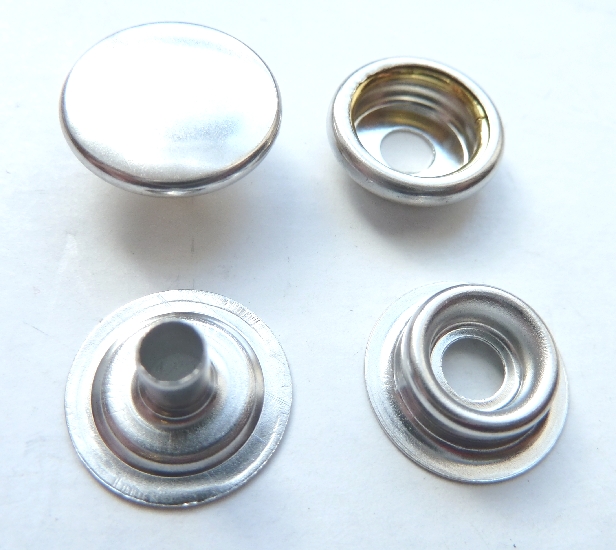

F02

Large ring spring fastening:
Cap diameter 15mm

Use setting tool: T13
Plain Brass

NP

Gunmetal
£4.25
(£5.10)
£26.25
(£31.50)
£236.67
(£284.00)
F03

Kane Morito brand
Size 5H (Medium) S spring press stud.

Cap diameter: 15 mm

Use setting tool: T15
Old Brass

Gunmetal

NP
£3.96
(£4.75)
£33.33
(£40.00)

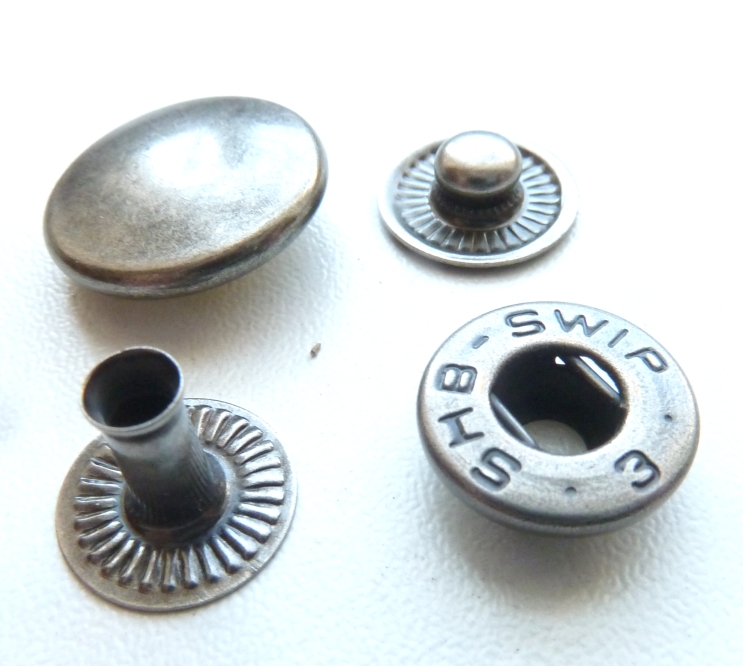

F03 A

Schaeffer Scovill brand
Size 5H (Medium) "S" spring press stud: cap diameter 15 mm

Use setting tool: T15
Dark Nickel
£3.96
(£4.75)
£33.33
(£40.00)

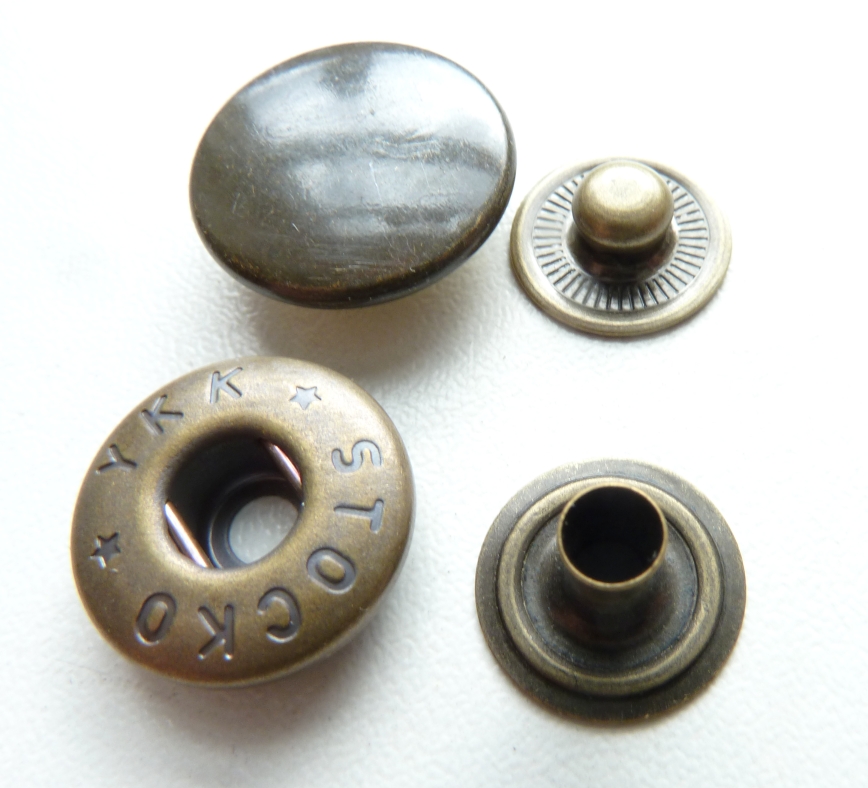

F03 C

YKK Stocko brand
Size 5H (Medium) "S" spring press stud: cap diameter 14 mm

Use setting tool: T15
Old Brass
£3.96
(£4.75)
£33.33
(£40.00)
Order Code
Description
Finish
Price / 10
(inc VAT)
Price / 100
(inc VAT)
F21 S

Small size: 14 mm diameter

Folding rear tabs - no setting tool required
NP


Brassed
£5.67
(£6.80)
£36.00
(£43.20)

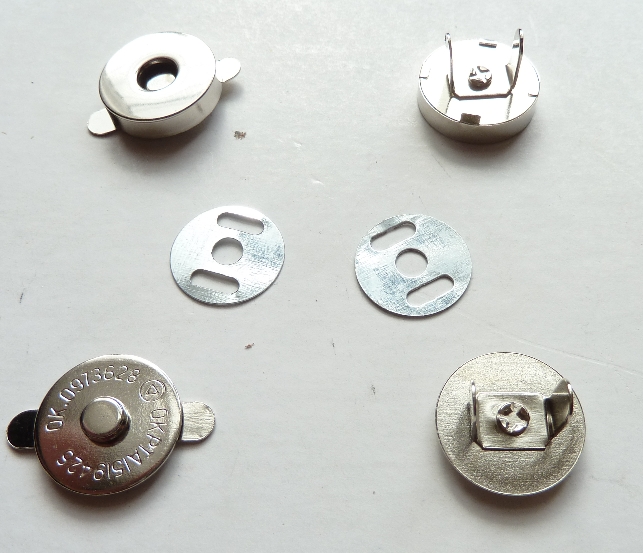

F21 L

Standard size: 18 mm diameter

Folding rear tabs - no setting tool required
NP


Brassed
£6.00
(£7.20)
£40.00
(£48.00)
F22

19 mm diameter

Rivet on fittings - use setting tools T19 & T200B
Old brass
£8.33
(£10.00)
£70.00
(£84.00)

Sam Browne studs are a classic fitting to secure pockets and straps.

Supplied as a two-piece fitting.

The top studs are machined from solid brass with steel based screws.

Order Code
Description
Finish
Price / 10
(inc VAT)
Price / 100
(inc VAT)
F23 Small

Head: 6 mm diameter
Shaft: 4 mm diameter x 2.75 mm long
NP

Brass
£3.33
(£4.00)
£28.33
(£34.00)
F23 Medium

Head: 6 mm diameter
Shaft: 4 mm diameter x 4 mm long
NP
£3.42
(£4.10)
£29.00
(£34.80)

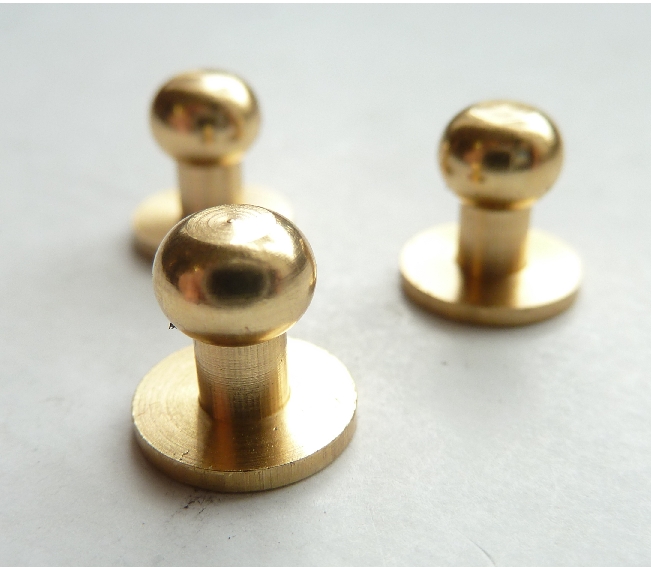

F23B Medium

Head: 6 mm diameter
Shaft: 3 mm diameter x 3 mm long
Brass
£3.25
(£3.90)
£28.50
(£34.20)
F23 Large

Head: 7 mm diameter
Shaft: 4 mm diameter x 6 mm long
NP

Brass
£4.17
(£5.00)
£35.42
(£42.50)

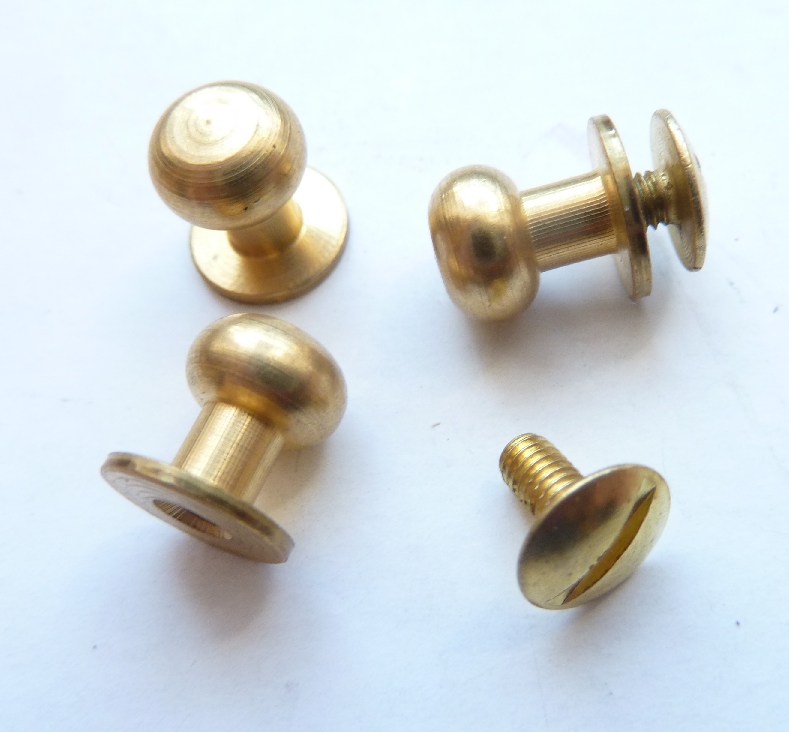

F23 501

The 501 is the classic size Sam Browne belt and equipment fitting.

Head: 8 mm diameter
Shaft: 4 mm diameter / 4 mm long
Brass

NP
£3.75
(£4.50)
£32.50
(£39.00)
Order Code
Description
Finish
Price / 10
(inc VAT)
Price / 100
(inc VAT)
F32-4

Machined from solid brass

Head: 9 mm diameter
Stem: 4 mm long x 5 mm thick
NP


Brass
£3.04
(£3.65)
£25.50
(£30.60)

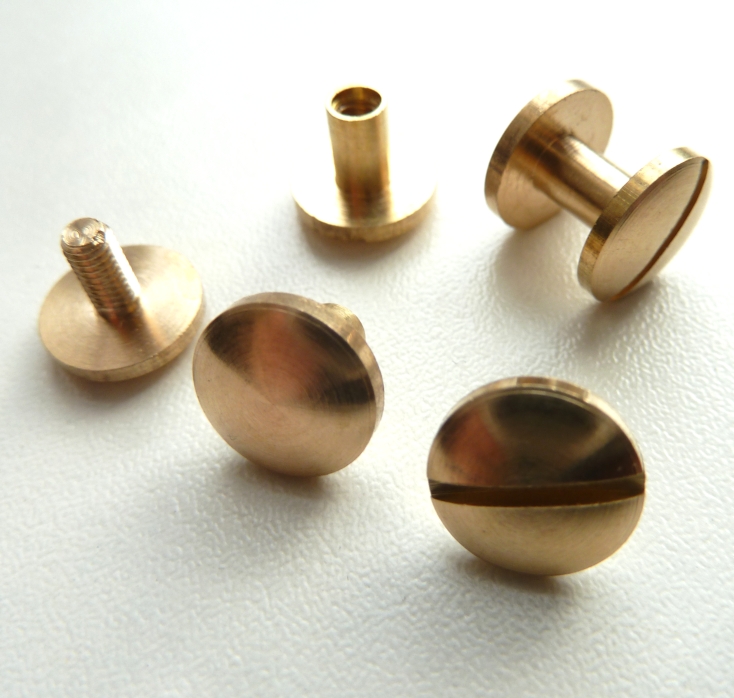

F32-6

Machined from solid brass

Head: 10 mm diameter
Stem: 6 mm long x 4 mm thick
Brass
£3.75
(£4.50)
£31.67
(£38.00)

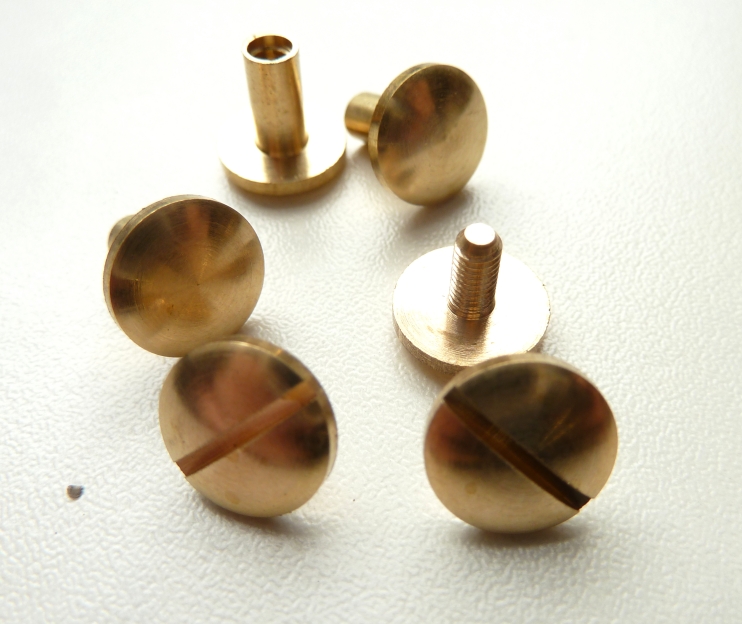

F32-8

Machined from solid brass

Head: 10 mm diameter
Stem: 8 mm long x 4 mm thick
Brass
£4.17
(£5.00)
£38.33
(£46.00)
F32-10

Machined from solid brass

Head: 9 mm diameter
Stem: 10 mm long x 5 mm thick
Brass
£4.17
(£5.00)
£33.50
(£40.20)

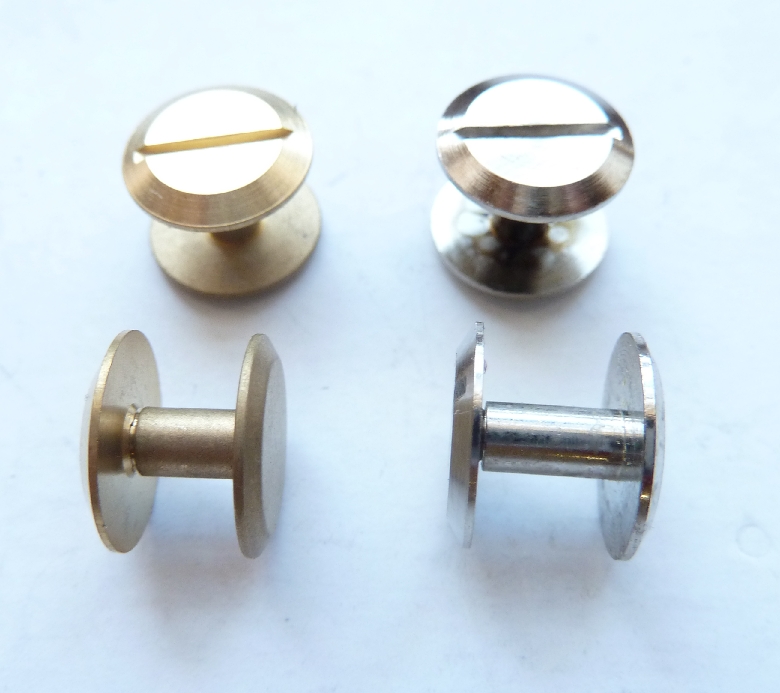

F32 Large

Machined from solid brass

Head: 12 mm diameter
Stem: 6 mm long x 4 mm thick
NP


Brass
Out of stock
£5.04
(£6.05)
£38.50
(£46.20)
